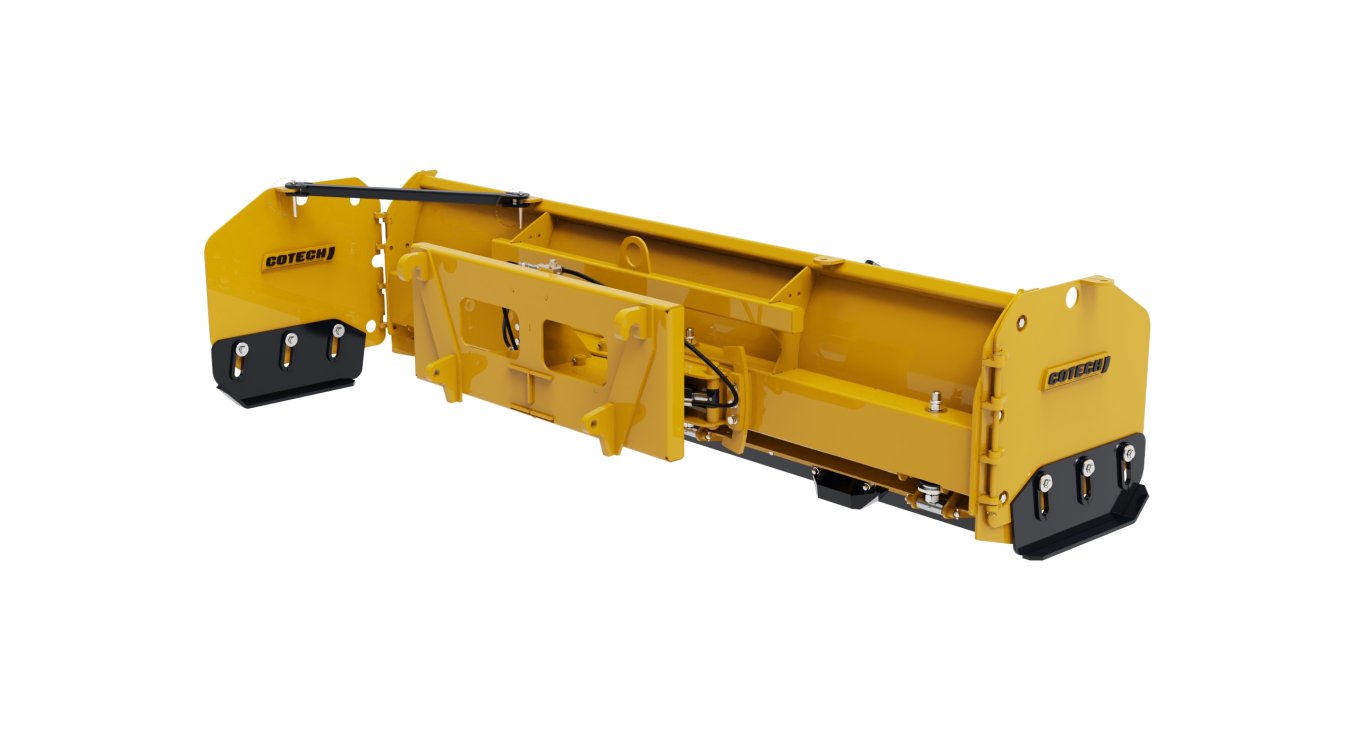

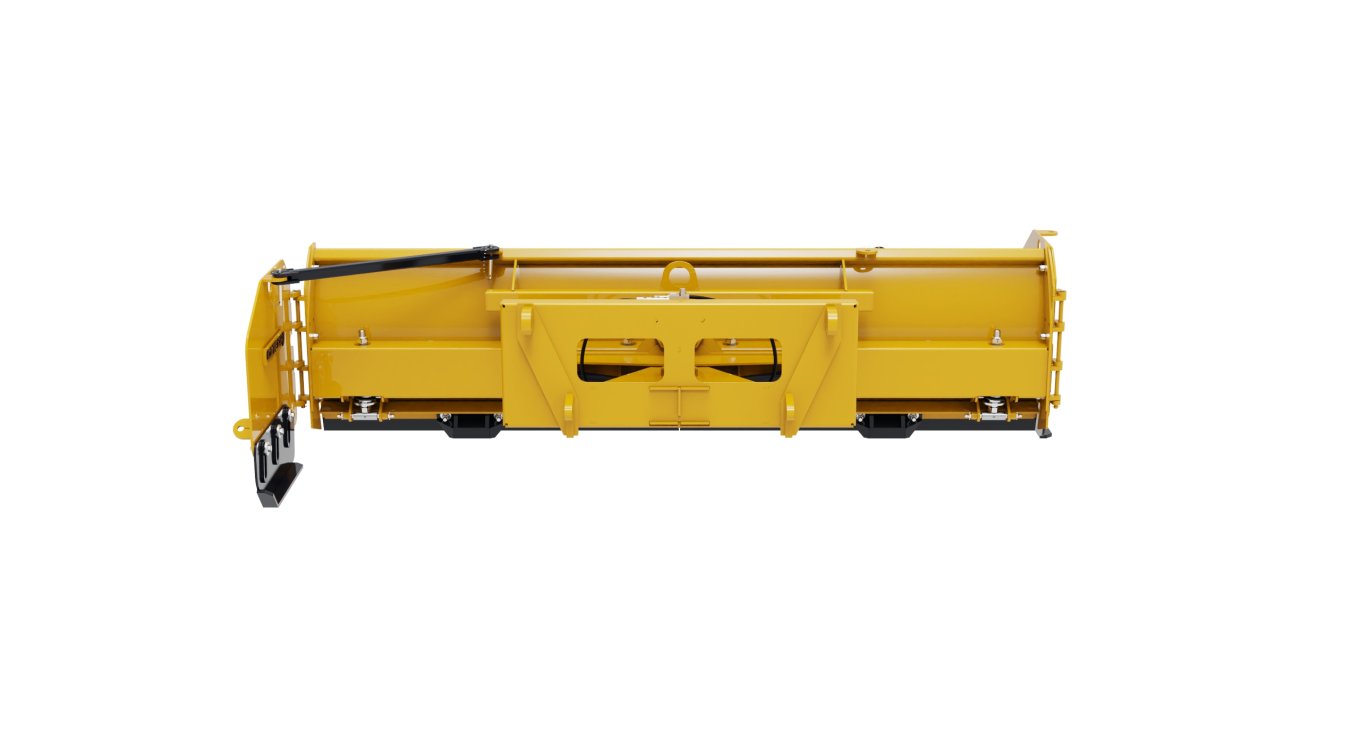

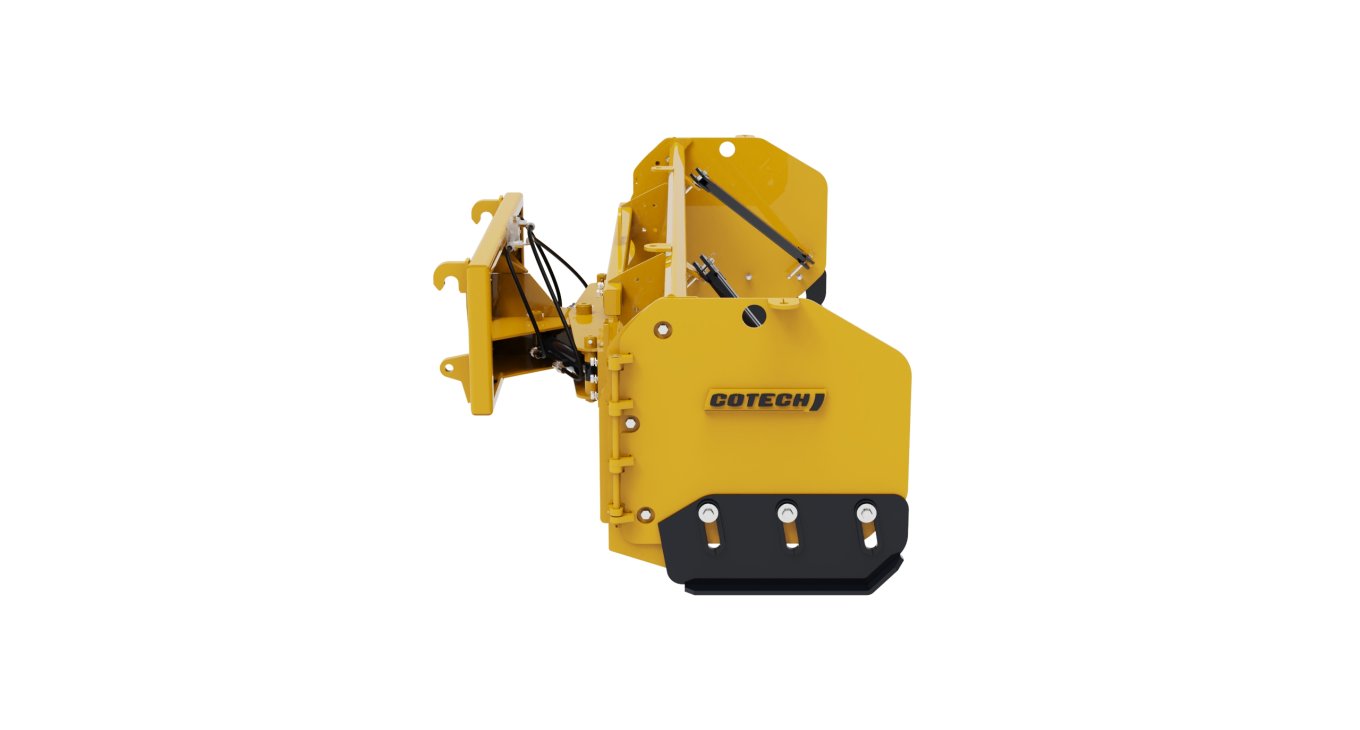

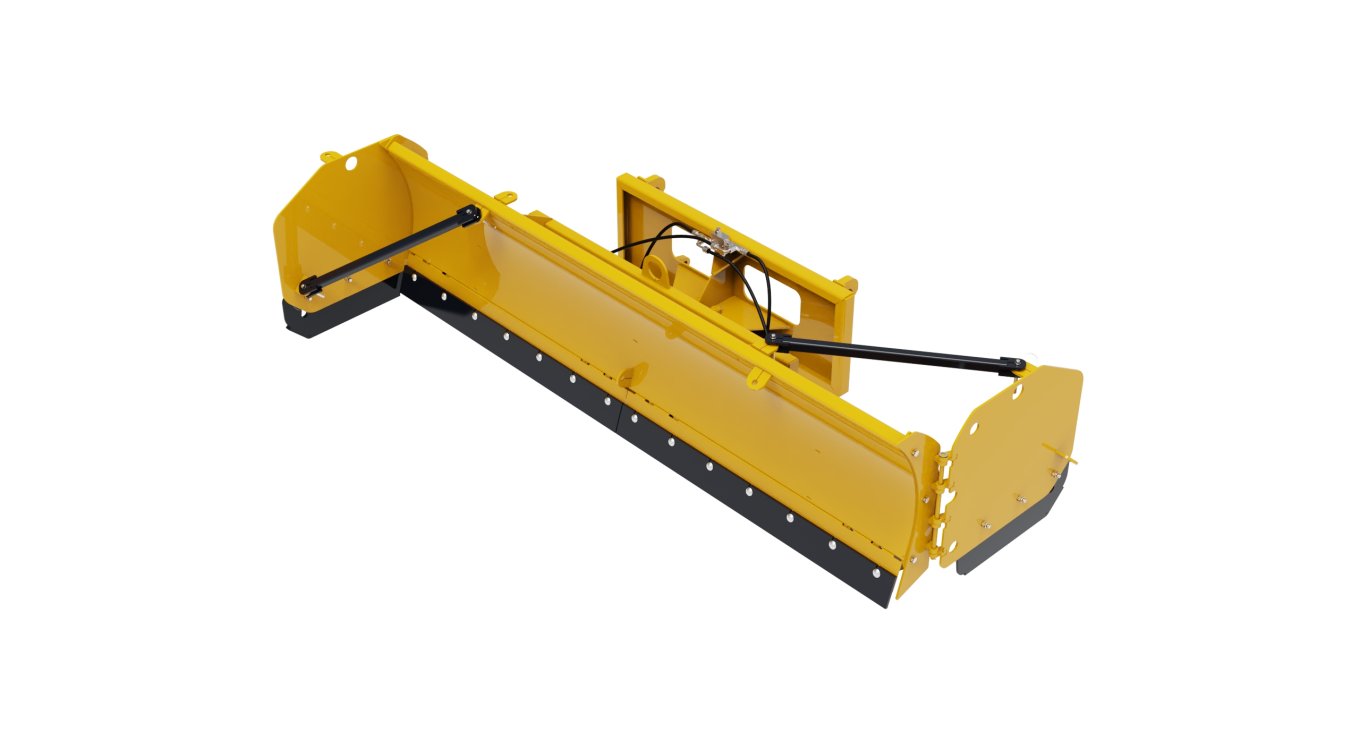

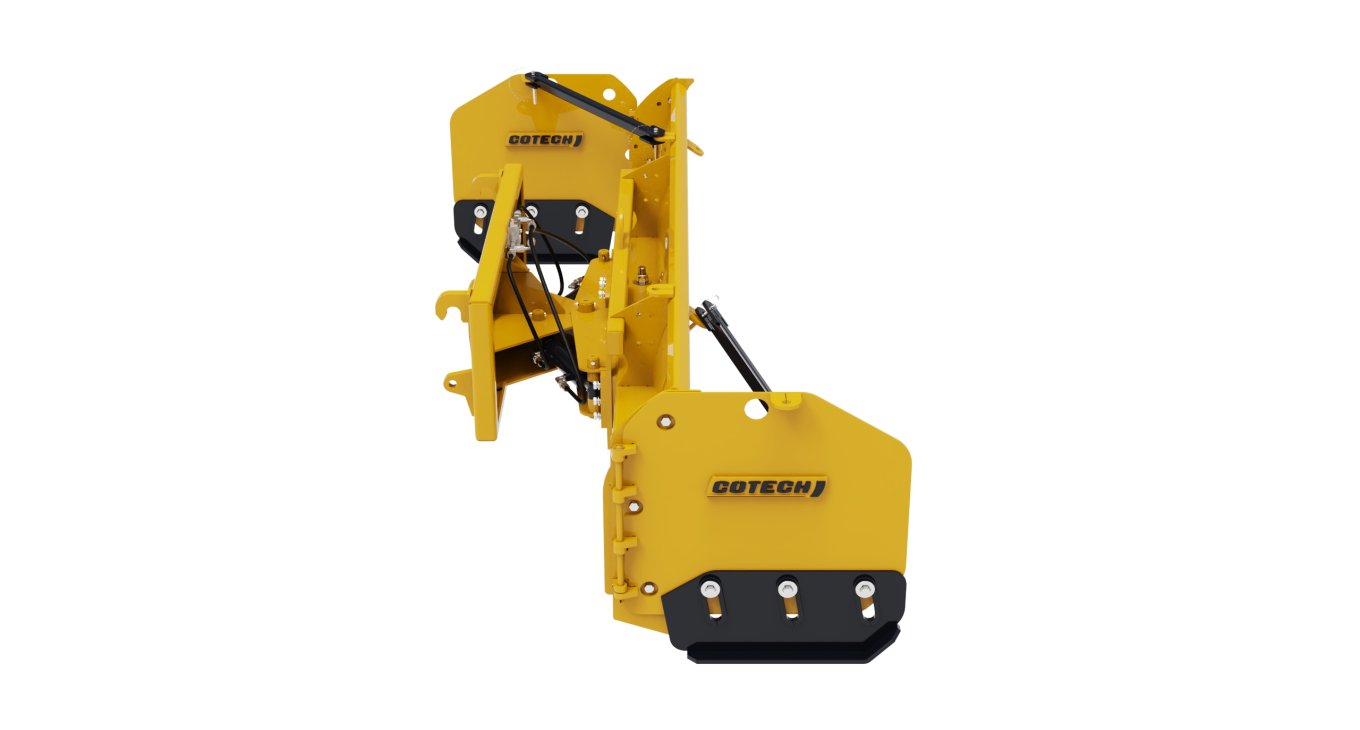

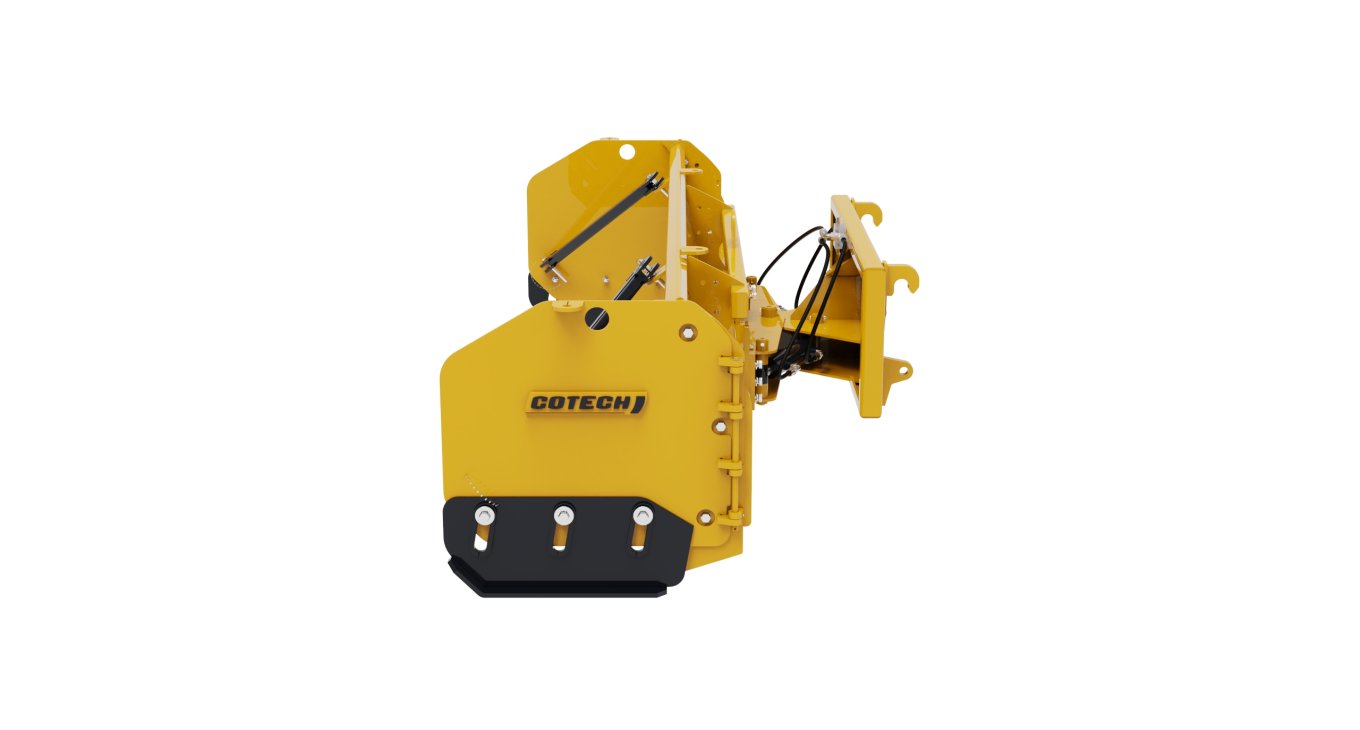

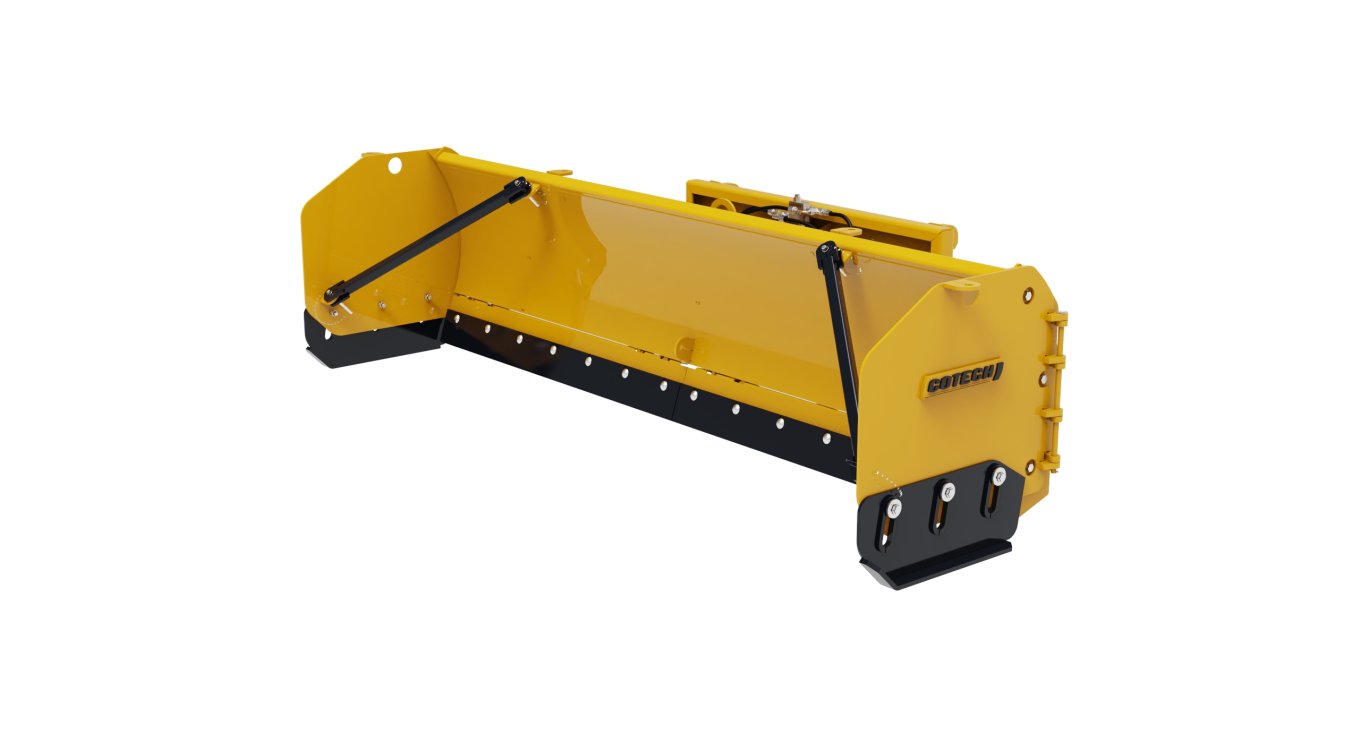

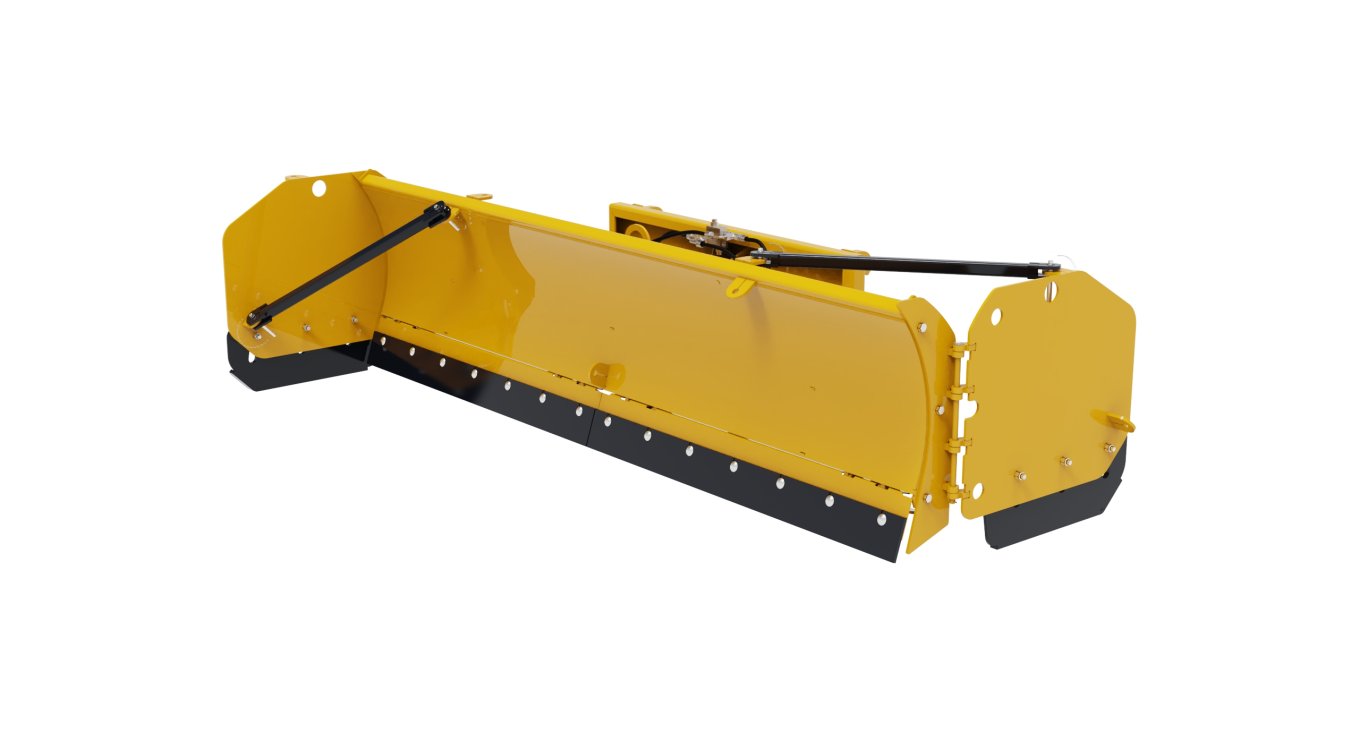

The robust construction of our GDC-PIV-CAPM products ensures an unmatched durability-price ratio. The manual pivoting wings allow snow to be pushed to the left or right. The hydraulic central pivot allows pushing the snow at a 30-degree angle. The steel trip blade absorbs shocks and impacts from road imperfections while in push mode, which increases the plow's durability and the operator's comfort.
25-150 HP
| GDC-PIV-CAPM | ||||||
| Models | Recommended Tractor | Width | Height | Weigth | ||
| GDC24-60-PIV-CAPM | 25 to 45 hp 3,000 to 5,000 lbs |
60" | 24" | 477 lbs | ||
| GDC24-72-PIV-CAPM | 25 to 45 hp 3,000 to 5,000 lbs |
72" | 24" | 516 lbs | ||
| GDC24-84-PIV-CAPM | 25 to 45 hp 3,000 to 5,000 lbs |
84" | 24" | 570 lbs | ||
| GDC24-96-PIV-CAPM | 25 to 45 hp 3,000 to 5,000 lbs |
96" | 24" | 609 lbs | ||
| GDC30-84-PIV-CAPM | 45 to 85 hp 5,000 to 10,000 lbs |
84" | 30" | 850 lbs | ||
| GDC30-96-PIV-CAPM | 45 to 85 hp 5,000 to 10,000 lbs |
96" | 30" | 915 lbs | ||
| GDC30-108-PIV-CAPM | 45 to 85 hp 5,000 to 10,000 lbs |
108" | 30" | 980 lbs | ||
| GDC30-120-PIV-CAPM | 45 to 85 hp 5,000 to 10,000 lbs |
120" | 30" | 1,150 lbs | ||
| GDC36-96-PIV-CAPM | 85 to 150 hp 10,000 to 20,000 lbs |
96" | 36" | 1,435 lbs | ||
| GDC36-108-PIV-CAPM | 85 to 150 hp 10,000 to 20,000 lbs |
108" | 36" | 1,510 lbs | ||
| GDC36-120-PIV-CAPM | 85 to 150 hp 10,000 to 20,000 lbs |
120" | 36" | 1,715 lbs | ||
